Today, we went to JUNIPER's new showroom in Soho to look at their updated fixtures and the new magnetic track system, MULTIVERSE.

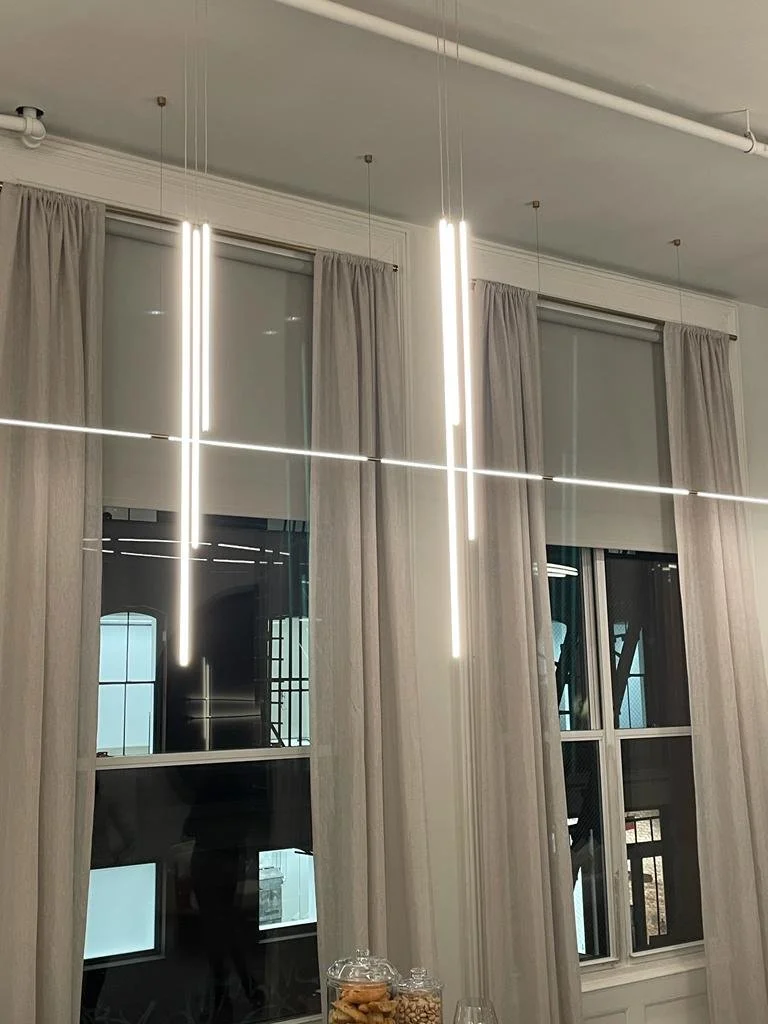

Below are some photos of their well-known THIN SYSTEM in horizontal and vertical installation, METROPOLIS tubular pendant, AXIS, and the modular FLUTES.
The THIN SYSTEM is not completely node-free. When dimmed down 50%, we start to see the diodes, and they were completely visible once dimmed below 30%. As a solution, we suggested making it slightly larger in diameter or using a more populated LED strip.
Update: 2700K is now a standard CCT.
The new magnetic track system, MULTIVERSE.
A low-voltage power distribution system with Pivot elements and connector “nodes”. It is a very low profile ribbon track with a dual circuit, paintable on-site to match the mounting surface.
It uses a magnetic system with a capacity of connecting up to 16 miniature spot modules.
**When the module is flipped 180 degrees, it will be on the second circuit. However, there is no indication (marking) on the module to determine which circuit it is.
The advantage of this system is that it could run 150FT from the power supply without voltage drop.
The 90 degree connector nodes (corner, inside & outside 90s) are currently in a curved shape. We suggested doing it with a sharp, straight edge, plus offering custom angles in addition to 90 degree.
The spotlight head comes in 500 lm and 800 lm Outputs with 360 degree rotation and 90 degree tilt. It comes with field-replaceable beam spread optics, snoot, & hex louver. The frosted lens is not a standard option but provided if required.
The mono-point version comes with a j-box cover plate.
